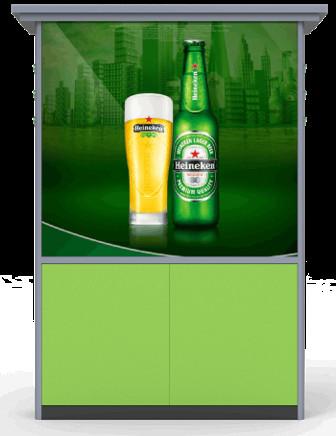

Super Slim 60" Demo Screen Plastic Bottle Recycling Vending Machine
Reward Digital Deposit / Coupon
Brief Introduction :
RVM-1109 Reverse Vending Machines (RVM) offers a clean and robust design,
equipped 2pcs of 50" demo screen play demo.
promote brand, attract traffic , increase the income. suitable for suitable for downtown, CBD, park, tourism etc .
It is reliable in use and scaled for locations in need of an
efficient and basic return solution for handling empty beverage
containers., without compactor, fit about 100pcs.
support multiple reward option- coupon, digital deposit, redeem
free bottle of water, drinks, samples . with printing module for print coupon, receipts and other vouchers.
User start the recycle by App access or scan QR code.
The flat design, suitable for wrapping advertisement and customized
branding by poster.
Parameters:
| Model# | RVM-1109 | Description: | Slim Demo RVM |
| Size (mm) | 1900H*900L*350D | Container only 1 | Plastic bottle/ metal can |
| Compactor | No | Sorted | yes |
| G.W | 100KGS | Storage capacity: | 100pcs plastic bottle |
| Voltage/ Frequency | AC110V, 230v, 50/60HZ 0.5A /10A | Output: | Max: 350W Idle status: 150w |
| recognition system | Bar code matching Configuration scanner Weight sensor | Reward | Coupon Donation Redeem gift |
| Operated | Button, option: APP, QR code | Display LCD | 5” |
| Process speed | 20pcs | Working Temp Humidity Noise | -10℃ to +45℃ <95%, <60db |
| Vend solution | Spring rods | Storage capacity | Max load 3-5 SKU, 20-100pcs |
| Suitable for | Semi-Outdoor | Network Solution | LAN,GPRS, 3G, 4G |
| Operate software | a.Standard in English b.Customized c.Manual operate | Remote control software | a. Standard b. Customized c. Standalone |
Special features | 1. UV sterilization 2. RVM with 4 protections 3. Over flow alarms 4. Abnormal alarms | Software integrated | Support |
Quick Detail:
1. App access or scan the QR code
2. Material types: plastic bottle
3. without compactor
4. Productivity: 20 pcs per min
5. Storage Capacity up to 100 pcs
6. Reward systems: Digital Deposit, Coupon, Donation
7. Automation: Barcode, material and weight sensors
8. Container size:150ml - Max 500ml
9. Over flow alarms
10. anti-clamping hand protection (door)
11. Non-conforming image identification Reject
12. No-conforming weight identification Reject.
13. 4 protections-OVP,SCP, RVP, RCD
More Designs
Building Circular Economy, Improve tge Recycle Industry Chain
Management Platform
a . Introduction and samples
b. Management Center
