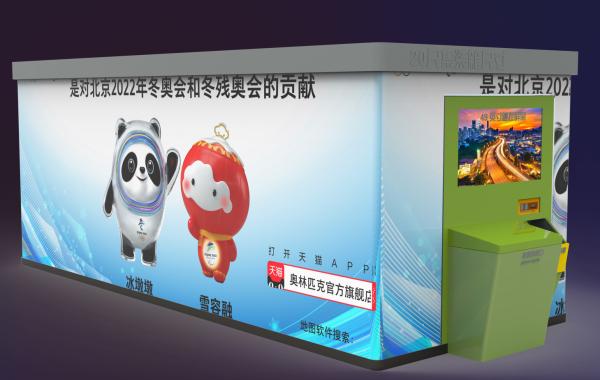

Modular customized containerized recycling and sorting equipme PET
Bottles/ Can/ Glass bottle
Brief Introduction :
RVM-3705 offer customized recycling & sorting equipment full
footprint in 20' container, moveable.
Ideal for recycle plastic bottle, metal can and glass bottle,
integrated automation systems process speed up to 220pcs/ min.
Equipped compactor module to large the storage capacity, soft drop
protect systems for glass bottle, also can meet the requirement
without compactor .
RVM-3705 compatible vary reward option in coupon, digital deposit,
42" touch screen, user start recycle via APP login or Scan the QR
code.
We customized the interactive software and reward systems .
Parameters:
| Model# | RVM-3705 | Description: | Super Recycling Line |
| Size (mm) | Operation RVM: 2000(H) x 1300(W) x 1050 (D) Process Line: 2400H*2400(W)*5956 (D) | Container | Plastic bottle, metal can, glass bottle |
| Compactor | Yes ( option: NO ) | Sorted | yes |
| Glass bottle | Soft drop systems | Process speed | 200pcs per min |
| Dis-assemble | option | Recycle per day | Up to 50,000 pcs |
| Voltage/ Frequency | AC110V, 230v, 50/60HZ 0.5A /10A | Output: | Max: 350W Idle status: 150w |
| recognition system | Bar code matching | Reward | Coupon Digital Deposit |
| Operated | APP, QR code | Touch screen | 42” |
| Suitable for | Shopping mall Super market Community Recycling center | Working Temp Humidity Noise | -10℃ to +45℃ <95%, <60db |
| Suitable for | Semi-Outdoor | Network Solution | LAN,GPRS, 3G, 4G |
| Operate software | a.Standard in English b.Customized c.Manual operate | Remote control software | a. Standard b. Customized c. Standalone |
Special features | 1. UV sterilization 2. RVM with 4 protections 3. Over flow alarms | Software integrated | Support |
Quick Detail:
1. User Screen: 42"
2. Material types: plastic PET bottle ,metal can, glass bottle
3. compactor for plastic bottle, metal can
4. soft drop system for glass bottle
5. sorte
6. Productivity: 220 pcs per min
7. modular
8. Reward systems: Digital Deposit, Coupon
9. Automation: Barcode
10. Container size:150ml - Max.2.5litres
11. anti-clamping hand protection (door)
12. 4 protections-OVP,SCP, RVP, RCD
13. support oftware integrated
More Designs
Management Platform
Remote control management software collect and transfer the opeate
reycling data, reward data, data analysis, transportation route
optimization & etc to Icould server. with over flow alarms,
abnormal alarms, remote settings etc
a . Introduction and samples
b. Management Center
Circle 8000 Remote Management Software
