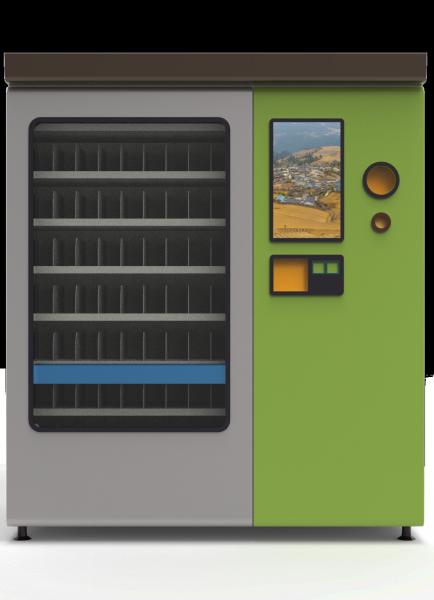

Tourism Spot 2in1 Integrated Smart Vending machine and Bottle
Recycling Machine
Brief Introduction :
RVM-3128 Reverse Vending machine (RVM) is a integrated solution of
recycling machine and vending machine in medium size.
RVM-3128 (RVM) are commodity-driven business models container
collection solution for plastic bottle,metal can, Built in
compressor module to enlarge the storage capacity up to 800pcs
plastic bottle, 600pcs metal can; support various reward option-
coupon, digital deposit.Beside recycle function,
Meanwhile RVM-3128 also equipped the spring rods ( conveyor belt)
vend dispensers, suitable for vary products from small to large
such as snacks, drinks and others. multiple operate option in
credit card, debit card, QR code. with printing module support
print coupon, receipts and vouchers.
Parameters:
| Model# | RVM-3128 | Description: | Large Smart RVM+ VM |
| Size (mm) | 1950H*2400L*1050D | Container | Plastic bottle, metal can |
| Compactor | yes | Sorted | yes |
Special
features
| 1. UV sterilization
2. RVM with 4 protections
3. Over flow alarms
4. Thermal printer | Storage capacity: | 800pcs plastic bottle
600pcs metal cans |
| Voltage/ Frequency | AC110V, 230v, 50/60HZ
0.5A /10A | Output: | Max: 350W
Idle status: 150w |
| recognition system | Bar code matching
Configuration scanner
Weight sensor | Reward | Coupon
Donation
Redeem gift |
| Operated | APP, QR code
Coin/ debit/ credit card | Touch screen | 32” |
| Process speed | 20pcs | Working Temp
Humidity
Noise | -10℃ to +45℃
<95%,
<60db |
| Vend solution | a.Spring rods b.Conveyor belt | Storage capacity | Max load 50-90 SKU,
1000-1600pcs |
| Suitable for | Semi-Outdoor | Network Solution | LAN,GPRS, 3G, 4G |
| Operate software | a. Standard in English
b. Customized
c. Manual operate | Remote control software | a. Standard
b. Customized
c. Standalone |
| G.W: | 350KGS | waterproof | IP54 |
Quick Detail:
1. 32" touch screen
2. Material types: plastic bottle, metal can
3. with compactor
4. Productivity: 20 pcs per min
5. Storage Capacity up to 800 pcs plastic bottle, 600pcs metal can
6. Reward systems: Digital Deposit, Coupon,Donation
7. Automation: Barcode, material and weight sensors
8. support vend vary products from small to large
9. Max load 50-90 SKU,1000-1600 pack depend on the size of package
10. payment option debit card, credit card, QR code
11. Container size:150ml - Max 1.5litres
12. Over flow alarms
13. anti-clamping hand protection (door)
14. Non-conforming image identification Reject
15. No-conforming weight identification Reject.
16. 4 protections-OVP,SCP, RVP, RCD
