Retail chain 55inch ads screen AI powered PET bottle & metal cans
Recycling RVM systems,multi-language software
Brief Introduction of Recycling machine:

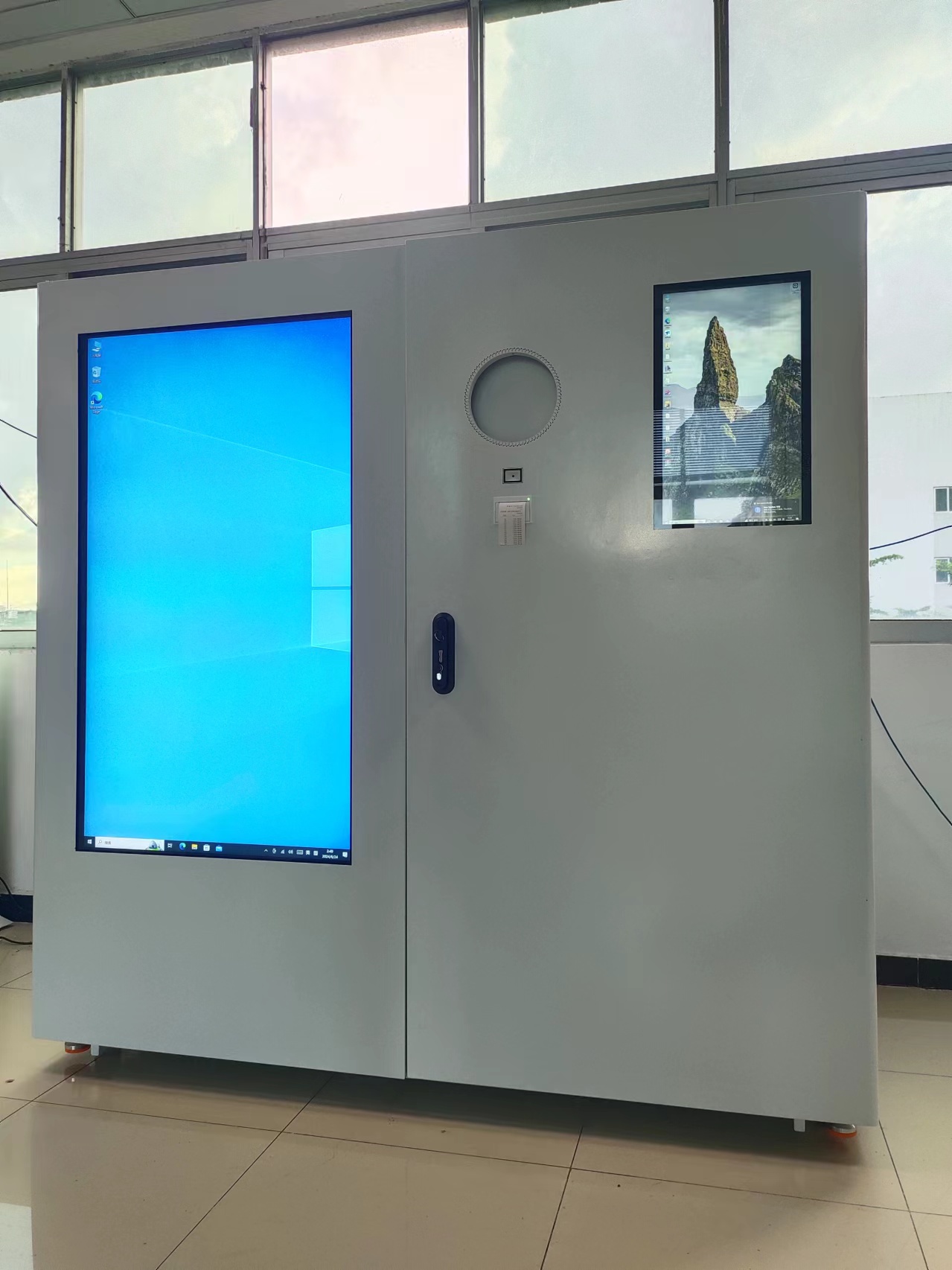

RVM-3109 Semi-outdoor Ads Reverse Vending Machine for PET Bottle &
Can, which offer a high efficient way to recycle and sort PET
bottles and metal cans, Equipped with 2* compactor module, which
enlarge the storage capacity, reward user coupon and digital points
to App.
21inch users screen, offer a interactive operation experience to
users.
55inch ads screen, offer a excellent ads solution for graphic and
video, attract traffic and helpful increase the return..
Highlights of RVM systems:
Modularization design, easy and low fees to maintain
Flexible configure to meet your requirements.
Anti-clip function, security to user
heavy caster wheels, relocatable
Suitable for wrapping to customer brand
Multi-language
Support software integrated
CE Certification
GreenGuard Recycling management softwares:
Operation Software –PC end and App end of Mobile phone
Monitor and Manage RVMs
Download operation report
Update ads photo and video
Mark RVM map
Monitor containers recycled in trash bag
Monitor real-time filling rate of collect bin
Abnormal alarms
Overflow alarms
Monitor the transport status of trash bag (option)
Features of Reverse Vending Machine:
Container Type : PET, metal Can
User’s Screen: 1*21 Inch Highlight type
Ads Screen: 1*55 Inch Highlight type
Detection: : 360˚detect of barcode, AI vision, Weight, Metal
material
Compressor module * 2
Sorting by 2 sections
Container Shape: Φ 50mm- 180mm
Container Length: 75mm- 340mm
Recovery Rate: 99%
Sorted storage: 1000 pcs PET , 1000 pcs metal can
Thermal Printer *1 PC
QR Card Reader * 1 PC
Smart Card Reader *1 PC (optional)
Parameters:
Dimension: 1800 (L)* 1880(W)*1000(D)mm
Power : AC220V/ 120V
Motor: 750w
Operating parameters:
Working Temp:-10℃ to +45℃, Humidity:<95%
Noise:<87db
Network: Lan, 4G Wifi module , 4G Sim Card
Technical Parameters of reverse vending solution:
| Product Attribute | Description |
|---|
| Reward Options | Coupon Print, Digital Points |
| Identify Module | 360-degree Barcode, Weight, AI Vision, and Metal Detect |
| Compacted | Plastic Bottle, Metal Can |
| Semi-Outdoor | Supermarket,Exhibition, Communities, Retail Shop, School, Airport,
Park,Business Center |
| Storage Capacity | 1200pcs Plastic Bottle, 1200pcs Metal Can |
| User's Screen | 21-inch Highlight Touch Screen |
| Ads Screen | 55-inch Highlight Type |
| Automated Sort | Yes |
